8 Steps to Setup the Laptop DMX512 LED Wristband

Step 1:

Take out the following 7PCS accessories:

1.1PC*DMX512 Transmitter Box

2.1PC*Antenna

3.1PC*DMX Connect Cable

4.1PC*6V1A DC Charger

5.1PC*USB-DMX512 Box

6.1PC*USB Connector

7.1PC USB Cabel

Note: NO. 1-4 is a standard set of GF DMX512 transmitter ;

NO. 5-6 add laptop control software is a standard driver kit if you need control with DMX512 laptop control system. This kit, can either order from us or take some similar driver as an alternative.

Step 2:

Assemble the antenna.

HTB1GWJoGL5TBuNjSspcq6znGFXan

Step 3:

Connect the DMX cable to the DMX512 port of the transmitter.

Step 4:

Connect the other end of the DMX512 cable to the USB -DMX

HTB1dlJSGKuSBuNjSsplq6ze8pXal

Step 5:

Connect the USB cable to the USB-DMX512 box.

Connect the other end of the USB cable to USB port of laptop.

HTB1F29RH41YBuNjy1zcq6zNcXXaN

Step 6:

Connect the DC charger.

HTB1NNXWGL9TBuNjy0Fcq6zeiFXaV

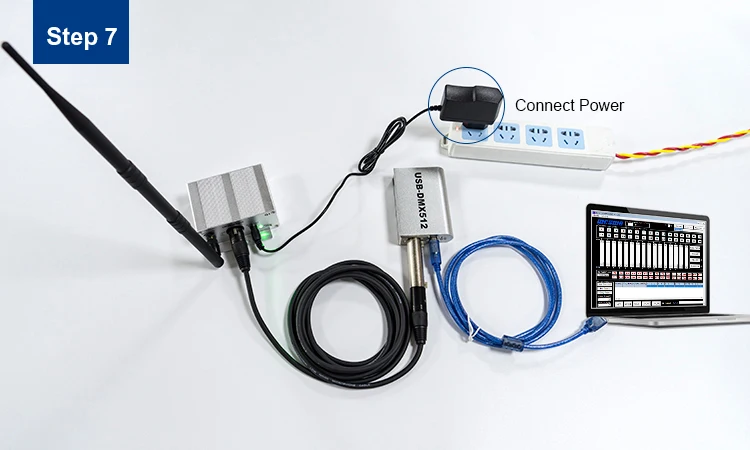

Step 7:

Connect power.

HTB1Bf0VGKOSBuNjy0Fdq6zDnVXa8

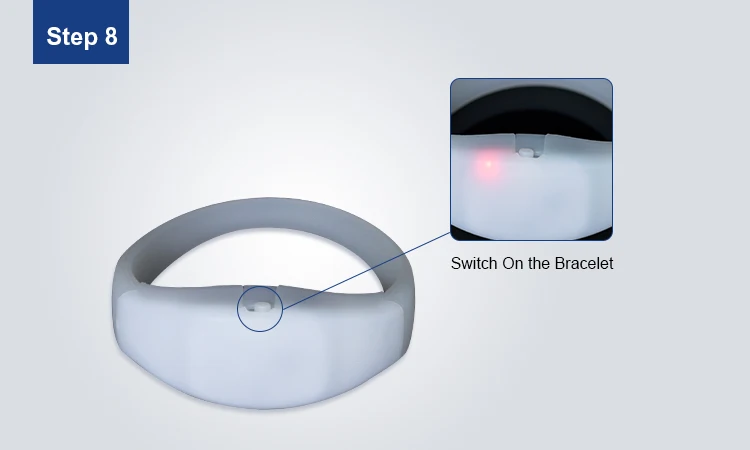

Step 8:

Switch on the LED Wristbands

HTB1zXoqaO6guuRkSnb4q6zu4XXaL
